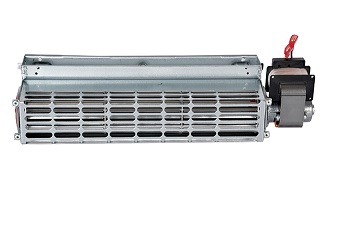

TTG300 - Fan series TTG


Code: 1VN0031
Installation: 3 x TTG300 already installed on the bar 600
Application: transfo from 315 to 630 kva
Plus: equipped with ball bearings





Related Products

Datasheet SERIE TTG ITA-ENG.pdf




The TTG series consists of small tangential fans that are used where a high volume of air and low noise in a limited space is required. The fans are equipped with a ø60 mm fan, length 240/300/360 mm depending on the model and with ball bearings. The motor is single-phase with 2 shielded poles, self-protected from impedance, insulation class “F”. The electrical connection is composed by radial or axial 6.3x0.8 mm male faston connectors.
