MANUAL PTC SIMULATOR ENG.pdf

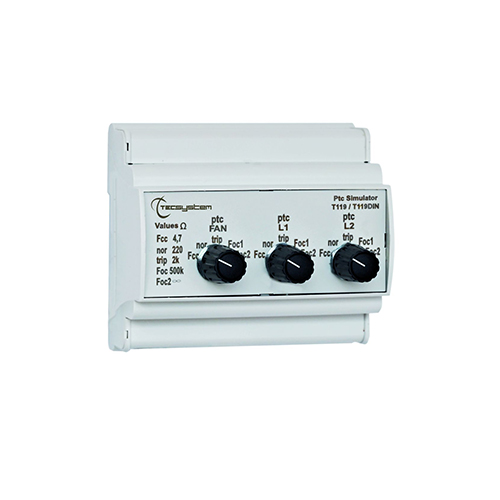

In case the operator needs to verify the right working of a  device, he can use our Ptc Simulator.

With a simple operation the operator can replace the sensors connected to the unit with the terminal supplied with the SIMULATOR.

By the potentiometer or the toggle switches he can easily simulate the temperature values. It is also possible to simulate different sensor faults such as, short circuit or open circuit.

Electrical features

• 3 PTC Output lines FAN-L1-L2
• Connection with 4 poles terminal pitch 5 double for T119 DIN or T119 unit
• Connection cable length 60cm

Mechanical features

• Dimensions: 106 x 95 mm – h. 80.4 mm
• BLEND PC/ABS UL 94V0 self-extinguishing housing
• Ambient operating temperature from -20°C to +60°C
• Humidity 90% no-condensing
